PB7300-2000-T Single-Channel Transmission System
Features
- Full Turnkey System: Arrives completely configured and ready to start making measurements
- Extremely economical: A fraction of the cost of previous THz Systems

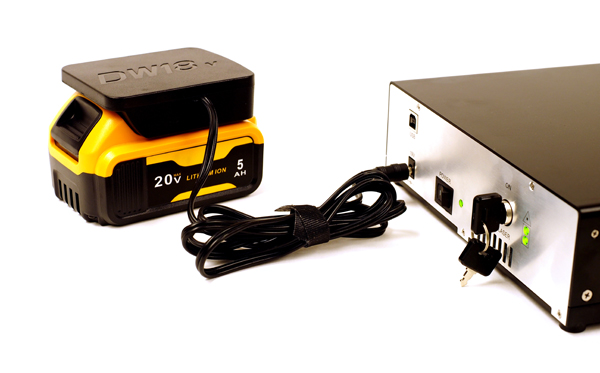

- Portable: External Li Ion battery available for hours of use and easily switchable
- Compact: 20 cm x 20 cm x 6 cm (7.9" x 7.9" x 2.4") and less than 2.5 kg
- Continuous rapid scanning from 100 GHz to over 1.8 THz
- Fiber optic coupled THz source and detector heads
- Room temperature solid state detection: No cryogenics required
- Integrated lock-in detection
- Shipped in custom travel case
- Custom versions available
Applications
- Materials characterization
- Chemical signature characterization
- Microwave and THz spectroscopy
Bakman Technologies' versatile PB7300-2000-T Spectroscopy Platform is designed for scanning complex compounds to precise specifications with greater accuracy and control. The PB7300 is ideal for THz researchers and application developers who need to study the properties of materials at THz frequencies with high-resolution, but who don't want to design and build their own high-resolution THz spectroscopy system. The PB7300 can sweep from 100 GHz to over 1.8 THz in a single rapid scan with frequency resolution better than 0.25 GHz.
The PB7300 employs precisely tuned, fiber coupled, butterfly packaged semiconductor DFB lasers, an advanced photo-mixing source and detector, and sophisticated digital control hardware and software to provide a fully turnkey THz spectrometer. The highly efficient CW nature of the photo-mixing source puts all the THz power at the frequency of interest, yielding excellent dynamic range across the scan range of up to 70 dB Hz.
The fiber-optically-coupled source and detector heads are mounted on a rail system and configured for transmission measurements. They may also be detached from the processor unit and used with extended fiber optic cables to provide maximum measurement flexibility in a wide range of applications.
